Webhook integration

Flex can send Data governance (Audit log) records and events to external systems via webhooks.

This enables real-time delivery of actions, alerts, or metadata to platforms like Slack, Microsoft Teams, or any custom endpoint.

Configuration

Configure the following environment variables:

Example Configuration

Slack

export WEBHOOK_PROVIDER="slack"
export WEBHOOK_URL="https://hooks.slack.com/services/T02ABCDEF/B03GHIJKL/abcd1234efgh5678ijkl9012"

Microsoft teams

export WEBHOOK_PROVIDER="teams"
export WEBHOOK_URL="https://prod-08.australiaeast.logic.azure.com:443/workflows/9e2032be5881463896e583f83324cfef/triggers/manual/paths/invoke?api-version=2016-06-01&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=abc123def456ghi789"

Generic/Local

export WEBHOOK_PROVIDER="generic"
export WEBHOOK_URL="http://localhost:9000"

Note: Be sure to keep the structure of the URL intact to match your webhook provider’s format — even if parts of it are redacted or rotated.

Verbosity

You can configure the verbosity with the WEBHOOK_VERBOSITY environment variable. Options are:

• MUTATIONS (default) - only mutations will be sent via the webhook
• QUERIES - only data inspect queries will be sent via the webhook
• ALL - both mutations and queries will be sent via the webhook

Payload Format

Webhook events are delivered via HTTP POST as structured JSON.

The schema below describes the generic webhook payload format using JSON Schema:

{
  "type": "object",
  "properties": {
    "via": {
      "type": "string",
      "enum": ["api", "ui"]
    },
    "cluster_id": {
      "type": "string"
    },
    "is_staged": {
      "type": "boolean"
    },
    "request_type": {
      "type": "string",
      "enum": ["kpow", "flex", "platform"]
    },
    "ts": {
      "type": "integer"
    },
    "id": {
      "type": "string"
    },
    "tenant_id": {
      "type": "string"
    },
    "subjects": {
      "type": "array",
      "items": {
        "type": "string"
      }
    },
    "event_type": {
      "type": "string"
    },
    "user": {
      "type": "object",
      "properties": {
        "roles": {
          "type": "array",
          "items": {
            "type": "string"
          },
          "uniqueItems": true
        },
        "name": {
          "type": "string"
        }
      },
      "required": [
        "roles",
        "name"
      ]
    },
    "resource_id": {
      "type": "string"
    },
    "schedule": {
      "type": "object",
      "properties": {
        "prerequisite": {
          "type": "string"
        },
        "expires_ms": {
          "type": "integer"
        },
        "started": {
          "type": "integer"
        },
        "state": {
          "type": "string"
        }
      },
      "required": [
        "prerequisite",
        "expires_ms",
        "started",
        "state"
      ]
    },
    "error": {
      "type": "object",
      "properties": {
        "type": {
          "type": "string"
        },
        "message": {
          "type": "string"
        },
        "required_action": {
          "type": "string"
        }
      },
      "required": [
        "type",
        "message"
      ]
    }
  },
  "required": [
    "via",
    "cluster_id",
    "is_staged",
    "request_type",
    "ts",
    "id",
    "tenant_id",
    "subjects",
    "event_type",
    "user",
    "resource_id"
  ]
}

Use Cases

Webhook integration enables you to:

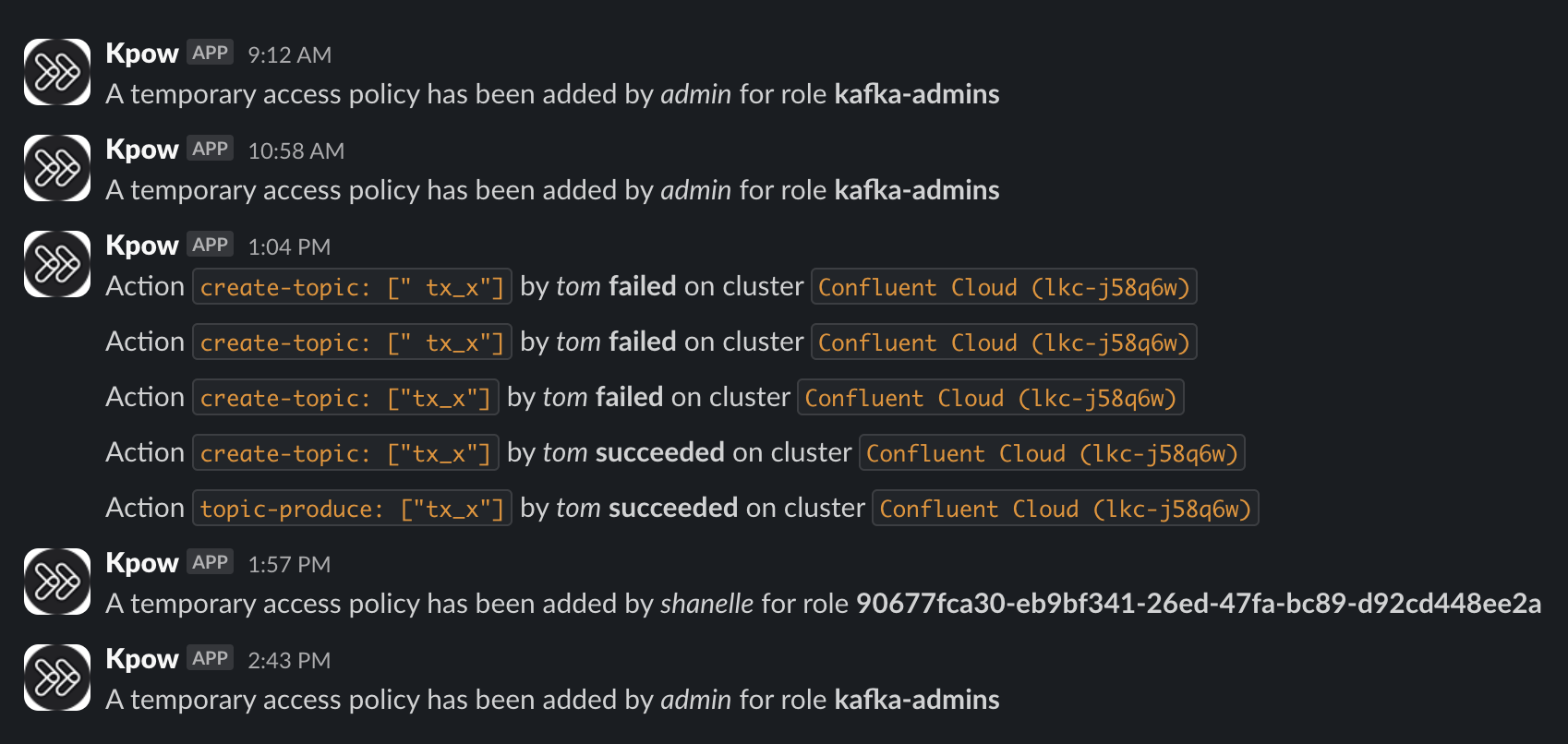

• Post audit log events to Slack or Microsoft Teams channels in real time
• Send user actions or mutations to internal logging or monitoring systems
• Trigger custom workflows via platforms like Zapier, n8n, or Logic Apps
• Integrate audit records into your SIEM or security compliance pipeline
• Notify engineering or DevOps teams when high-impact operations occur
• Test integration pipelines using a local HTTP server (generic)
