Azure AD integration

User authentication

Configuring Azure AD

• Open the Azure Portal and select the directory to use for single sign-on.
• Navigate to Enterprise Applications > Add an Application > Non-Gallery Application.
• Pick a name for the Kpow instance that you are securing and click the Add button.
• You should now be in the dashboard for the Kpow application.
• Navigate to Single Sign-On, select SAML as the single sign-on method.

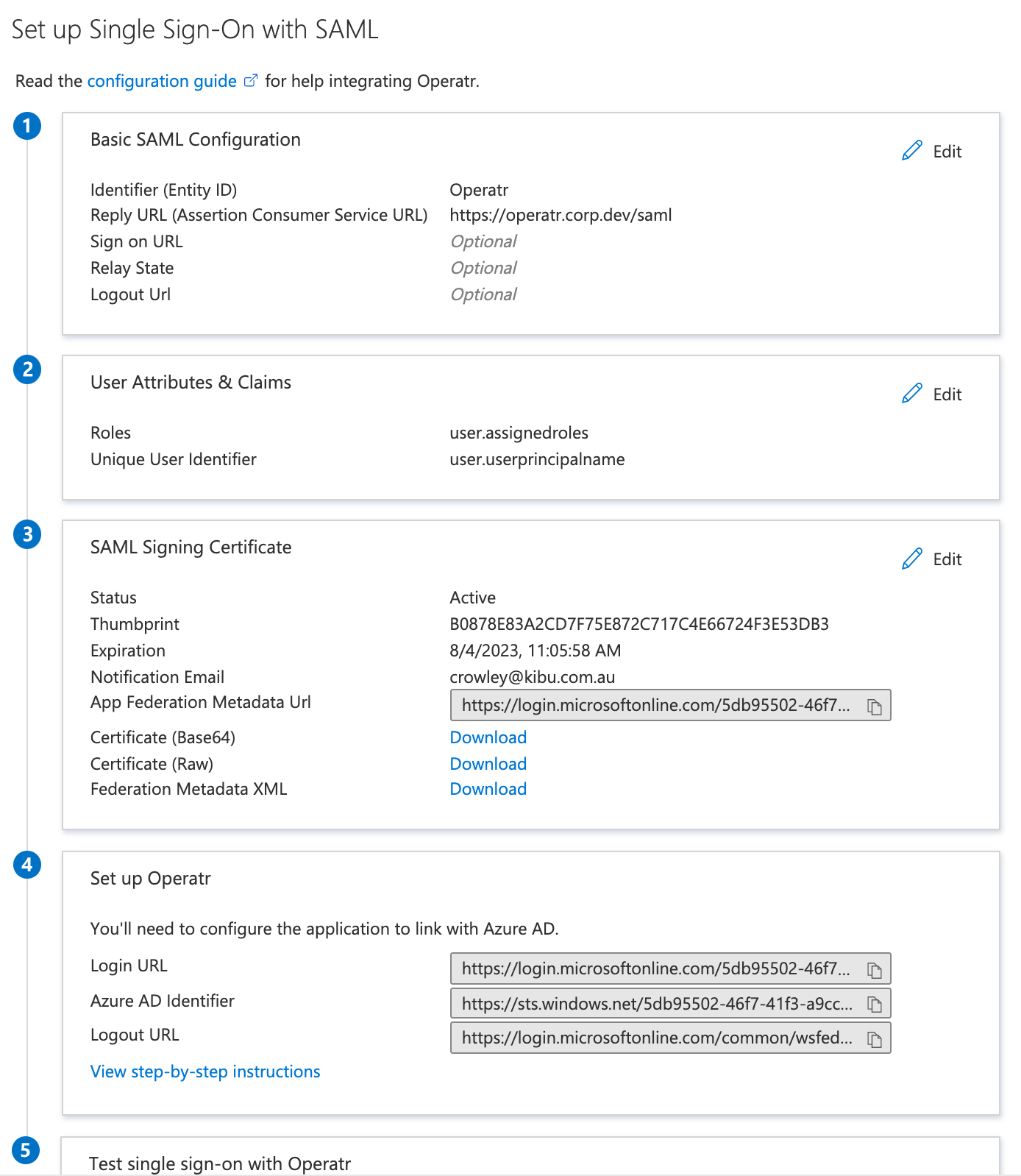

Basic SAML configuration

• Identifier (Entity ID): set this to a suitable name for the instance you are securing, e.g. Kpow-UAT-1.
• Reply URL (Assertion Consumer Service URL): Your Kpow instance SAML URL, e.g:

  https://kpow.corp.com/saml


• Leave the other fields blank

SAML signing certificate

Download the Federation Metadata XML file and (optionally) Certificate (Raw). Save these for later.

Integrate Kpow and Azure AD SSO

Set the following environment variables and start Kpow.

AUTH_PROVIDER_TYPE=saml
SAML_RELYING_PARTY_IDENTIFIER=[Identifier (Entity ID)]
SAML_ACS_URL=[Reply URL (Assertion Consumer Service URL)]
SAML_METADATA_FILE=[path to downloaded Federation Metadata XML]

# Optional
SAML_CERT=[path to the Certificate (Raw) .pem file]

Kpow will now authenticate users with Azure AD.

User authorization

See the guide to Role Based Access Control for full configuration details.

Integrate Azure AD and Kpow RBAC

• Follow this Microsoft guide to populate user.assignedroles
• Then setup attribute claims within your Enterprise Application configuration like so:
  • Required Claim: Set Unique User Identifier (Name ID) to user.userprincipalname
  • Additional Claim: Set Roles to user.assignedroles
• Note: Azure AD does not pass the default role (User) as an assigned role in the SAMLResponse.
