kJQ filters

Overview

JQ is a popular, practical language described as 'like sed for JSON data'.

Data inspect supports JQ-like filters on Kafka topics. We call this kJQ.

kJQ is fast, easily scanning tens of thousands of messages from a Kafka topic each second.

Sample KJQ Query

The kJQ input field provides context highlighting, auto-completion, command memory (press up-arrow to view previous filters) and fast-execution (press shift-enter to execute the search).

Normally your kJQ filters will start with .key .value or .header but you can search on any field returned with a Kafka record, including topic, offset, etc.

Kpow implements a subset of JQ allowing you to search JSON, Avro, Transit, EDN, String, and Custom Serdes with complex queries on structured data.

Language

kJQ filters can be applied to keys, values, and headers.

Kpow will scan tens of thousands of messages a second to find matching data.

kJQ is not whitespace sensitive.

kJQ Grammar

A kJQ filter is a limited version of a basic JQ filter.

Filters

A filter consists of a selector optionally followed by a transform then either a comparator or a function.

A filter can optionally be negated and joined with other filters with a logical operator.

Selectors

A selector is a JQ dot notation Object Index or zero-based Array Index.

e.g. .foo.bar, .[0], .foo[1].bar

A selector can also be a quoted string or generic object index, just like normal JQ.

e.g. .foo."bar.foo" matches a key containing a period, i.e. {"foo": {"bar.foo": 1}}

e.g .foo.[:he*llo] matches an explicit Clojure keyword {"foo" {:he*llo 2}}

Simple dot notation selectors match both String or (Clojure) Keyword keys.

Transforms

A transform converts the value of a field, often in use with a comparator or function.

Valid transforms: length, to-long, to-double, from-date, min, max

E.g. | to-long, | min

Comparators

A comparator is an operator followed by a selector or a scalar.

Valid operators: ==, !=, <, <=, >, >=

e.g. >= 10, != false, == "text", == nil, != null, < .foo.baz

Function

A function is a pipe followed by a function-name with text, keyword, number, or regex parameter.

Valid function names: startswith, endswith, inside, has, test, within, contains

e.g. | test(".*tx"), | startswith("text"), | endswith("text"), | contains("text")

kJQ Query Evaluation

Multiple kJQ filters can be joined with a logical AND or OR, just like normal JQ.

kJQ also supports standard explicit logical operator precedence with parenthesis.

e.g. (.key.id or .key.currency == "GBP) and .value.tx.discount | to-double < 20.20

kJQ Query Negation

A kJQ query filter can be negated. Negation can be applied to logically combined filters.

e.g. | not

Examples

Truthy Filter

.foo

Matches where the selector is not null.

E.g {"foo": true} or {"foo": 1} will match, {"bar": true} will not match

Scalar Comparator Filter

.foo.bar > 10

Matches where the selector > 10

E.g. {"foo": {"bar": 11}} will match, {"foo": {"bar": 8}} will not

Selector Comparator Filter

.foo.bar == .foo.zoo

Matches where both selectors are equal.

E.g. {"foo": {"bar": 10, "zoo": 10}} will match, {"foo": {"bar": 10, "zoo": 7}} will not

Function Filter

.foo.baz[0] | contains("IDDQD")

Matches where the selector contains text

E.g. {"foo": {"baz": ["IDDQDXXXXX"]}} will match, {"foo": {"baz": ["XXXXX"]}} will not.

Regex Tests

Just like JQ you can test if a regex matches a field

.key.id | test(".*p")

True when the .key.id matches the regex #.*p

Negated Filter

.[0].foo | contains("IDDQD") | not

Matches where the selector does not contain text.

Quoted and Clojure Selectors / Scalars

.foo/bar.baz > 10 and
.foo."field!" == :some-keyword

kJQ understands quoted and Clojure data

Multiple Filters (And)

.foo.bar > 10 and
.foo.bar == .foo.zoo and
.foo.baz[0] | contains("IDDQD")

Matches where every filter is true.

Multiple Filters (Or)

.foo.bar == .foo.zoo or
.foo.baz[0] | contains("IDDQD")

Matches where any filter is true.

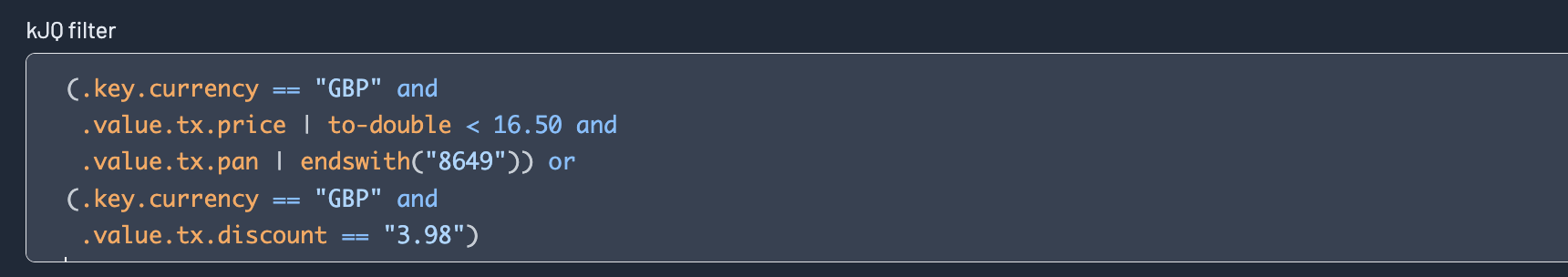

Multiple Filters (Mixed)

Combine multiple filters with and, or, and explicit precedence.

(.key.currency == "GBP" and
 .value.tx.price | to-double < 16.50 and
 .value.tx.pan | endswith("8649")) or
(.key.currency == "GBP" and
 .value.tx.discount == "3.98")
