Lab 6: Flink SQL - Writing Kafka Order Records to MinIO as Parquet Files

Ingest Kafka order records using Flink SQL and write them as Parquet files to MinIO object storage. This lab uses the Filesystem connector in a streaming context to produce batch-style output, demonstrating Flink's integration with streaming-compatible lakehouse sinks.

How to start

Clone project repository

git clone https://github.com/factorhouse/examples.git
cd examples

Start Kafka and Flink environments

We'll use Factor House Local to quickly spin up Kafka and Flink environments that include Kpow and Flex as well as an analytics environment for Iceberg. We can use either the Community or Enterprise editions of Kpow/Flex. To begin, ensure valid licenses are available. For details on how to request and configure a license, refer to this section of the project README.

## Clone the Factor House Local Repository
git clone https://github.com/factorhouse/factorhouse-local.git

## Download Kafka/Flink Connectors and Spark Iceberg Dependencies
./factorhouse-local/resources/setup-env.sh

## Uncomment the sections to enable the edition and license.
# Edition (choose one):
# unset KPOW_SUFFIX         # Enterprise
# unset FLEX_SUFFIX         # Enterprise
# export KPOW_SUFFIX="-ce"  # Community
# export FLEX_SUFFIX="-ce"  # Community
# Licenses:
# export KPOW_LICENSE=<path-to-license-file>
# export FLEX_LICENSE=<path-to-license-file>

docker compose -p kpow -f ./factorhouse-local/compose-kpow.yml up -d \
  && docker compose -p flex -f ./factorhouse-local/compose-flex.yml up -d

Deploy source connector

We will create a source connector that generates fake order records to a Kafka topic (orders). See the Kafka Connect via Kpow UI and API lab for details about how to create the connector.

Once deployed, we can check the connector and its tasks in Kpow.

Create pipeline

This example runs in the Flink SQL client, which can be started as shown below.

docker exec -it jobmanager ./bin/sql-client.sh

Load dependent JARs

We begin by loading the necessary JAR files for the Apache Kafka SQL connector and Confluent Avro format support.

ADD JAR 'file:///tmp/connector/flink-sql-connector-kafka-3.3.0-1.20.jar';

ADD JAR 'file:///tmp/connector/flink-sql-avro-confluent-registry-1.20.1.jar';

show jars;
-- +-------------------------------------------------------------+
-- |                                                        jars |
-- +-------------------------------------------------------------+
-- |     /tmp/connector/flink-sql-connector-kafka-3.3.0-1.20.jar |
-- | /tmp/connector/flink-sql-avro-confluent-registry-1.20.1.jar |
-- +-------------------------------------------------------------+
-- 2 rows in set

Create source table

The source table is defined using the Kafka SQL connector, enabling Flink to consume Avro-encoded messages from the orders Kafka topic. To support time-based processing and potential windowed aggregations, an event-time watermark is introduced on bid_time using WATERMARK FOR bid_time AS bid_time - INTERVAL '5' SECOND. This watermark allows Flink to track event time progress and handle out-of-order events, which is required for time-based operations such as windowed aggregations or joins.

💡 The watermark definition can be omitted in this lab because the goal is simply to write Kafka records to an object storage (MinIO) without performing time-base transformations. However, including it prepares the pipeline for future event-time logic.

CREATE TABLE orders (
  order_id     STRING,
  item         STRING,
  price        STRING,
  supplier     STRING,
  bid_time     TIMESTAMP(3),
  WATERMARK FOR bid_time AS bid_time - INTERVAL '5' SECOND
) WITH (
  'connector' = 'kafka',
  'topic' = 'orders',
  'properties.bootstrap.servers' = 'kafka-1:19092',
  'format' = 'avro-confluent',
  'avro-confluent.schema-registry.url' = 'http://schema:8081',
  'avro-confluent.basic-auth.credentials-source' = 'USER_INFO',
  'avro-confluent.basic-auth.user-info' = 'admin:admin',
  'avro-confluent.schema-registry.subject' = 'orders-value',
  'scan.startup.mode' = 'earliest-offset'
);

Run the following query to view the source table:

select * from orders;

Create sink table

A sink table, orders_sink, is defined to write processed order records to object storage (e.g., MinIO) in Parquet format. The data is partitioned by bid date, hour, and minute to enable efficient querying and organization.

The table uses the Filesystem connector with the s3a:// scheme for writing to S3-compatible storage. Partition commit policies and rolling options are configured to optimize file size and latency.

SET 'parallelism.default' = '3';

SET 'execution.checkpointing.interval' = '60000';

CREATE TABLE orders_sink(
  bid_date     STRING,
  order_id     STRING,
  item         STRING,
  price        DECIMAL(10, 2),
  supplier     STRING,
  bid_time     TIMESTAMP(3)
) PARTITIONED BY (bid_date) WITH (
  'connector' = 'filesystem',
  'path' = 's3a://fh-dev-bucket/orders/',
  'format' = 'parquet',
  'sink.parallelism' = '3',
  'sink.partition-commit.delay' = '1 min',
  'sink.partition-commit.policy.kind' = 'success-file',
  'sink.rolling-policy.file-size' = '128 MB',
  'sink.rolling-policy.rollover-interval' = '15 min',
  'sink.rolling-policy.check-interval' = '1 min'
);

INSERT INTO orders_sink
SELECT
    DATE_FORMAT(bid_time, 'yyyy-MM-dd'),
    order_id,
    item,
    CAST(price AS DECIMAL(10, 2)),
    supplier,
    bid_time
FROM orders;

| 🛠 Note: To enable MinIO access, the following settings are included in the flink-conf.yaml:

fs.s3a.access.key: admin
fs.s3a.secret.key: password
fs.s3a.endpoint: http://minio:9000
fs.s3a.path.style.access: true

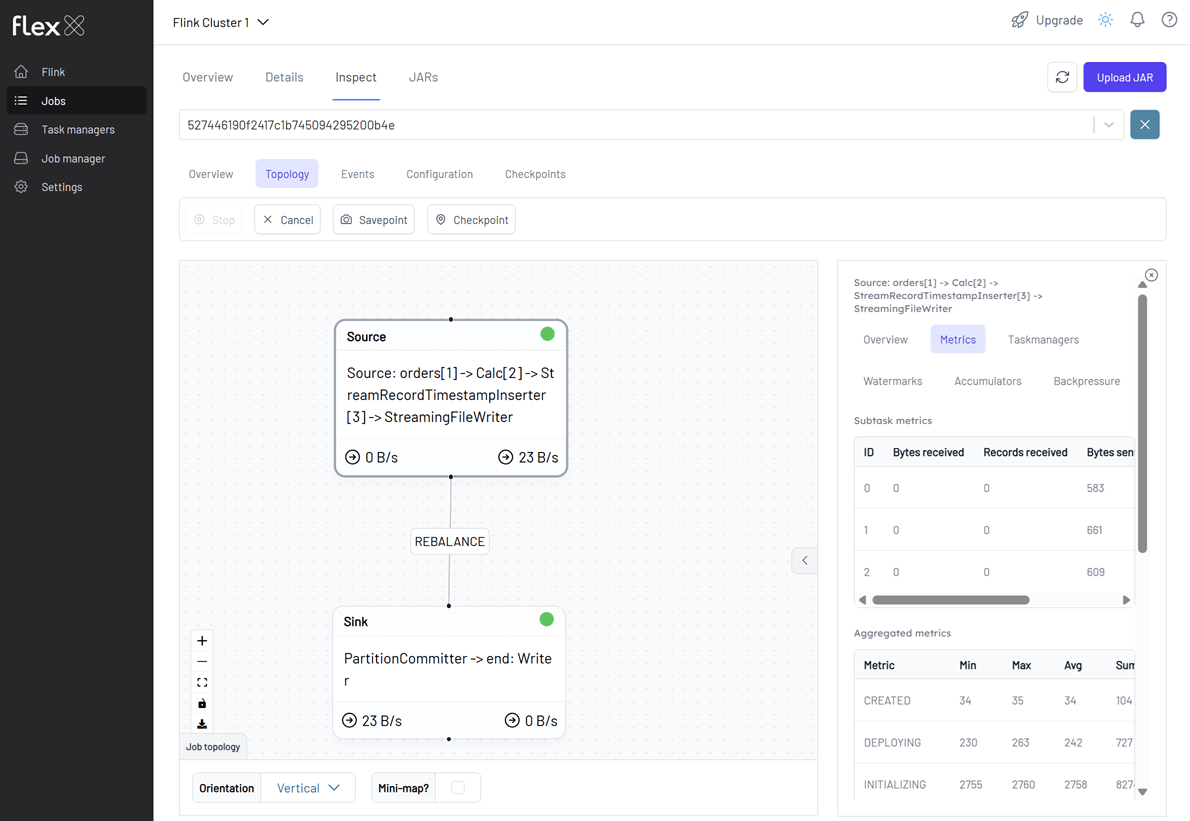

We can monitor the Flink job via the Flink UI (http://localhost:8082) or Flex (http://localhost:3001). The screenshot below shows the job's logical plan as visualized in Flex.

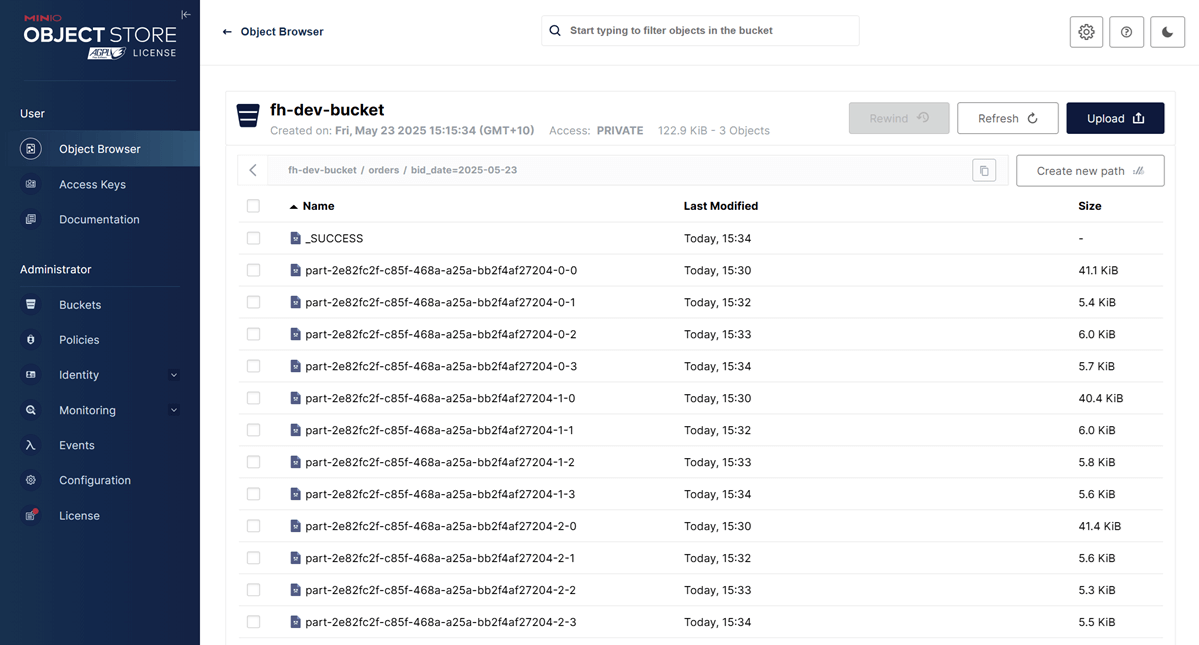

In addition to monitoring the job, we can verify the output by inspecting the Parquet files written by the sink. These files are accessible via MinIO at http://localhost:9001 using admin as the username and password as the password. As shown in the screenshot below, the records have been successfully written to the appropriate partitions in the fh-dev-bucket bucket.

Shutdown environment

Finally, stop and remove the Docker containers.

If you're not already in the project root directory, navigate there first. Then, stop and remove the Docker containers by running:

# Stops the containers and unsets environment variables
docker compose -p flex -f ./factorhouse-local/compose-flex.yml down \
  && docker compose -p kpow -f ./factorhouse-local/compose-kpow.yml down

unset KPOW_SUFFIX FLEX_SUFFIX KPOW_LICENSE FLEX_LICENSE
